Catalog No. : TL18420C

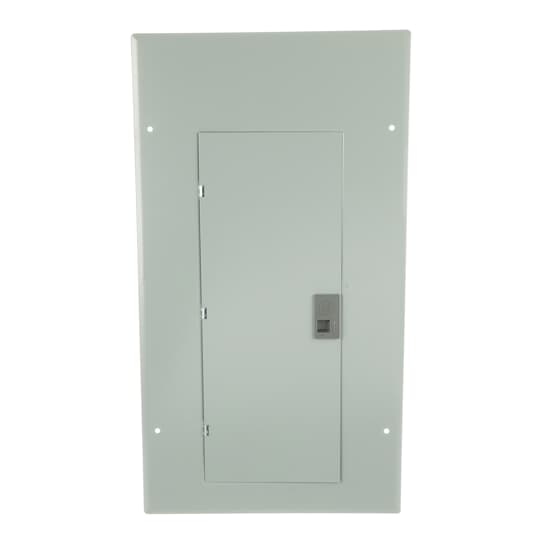

Description: MAIN LUG 200A 18CRT COMBO LD CENTER
UPC: 783164189902
Panelboards No. 67 60 degree/75 degree centrigrade Conductor Rating Suitable for use as service entrance equipment when Installed in accordance with the National Electrical Code 22kAIC RMS symmetrical, Except Where Noted 6-42 circuit devices UL Listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down For a listing of CSA Listed load centers, visit www.geelectrical.com Amperage 200 A 420C9902
View More
View Less
For more info visit:
electrification.us.abb.com
Descriptors
|
Category |
Commercial/High-rise Residential |
|
GO Schedule |
R7 |
Specifications
|
Input/Output Voltage |
208Y/120V ac |
|
Type |
Standard |
|
Interrupting Capacity Rating |
65 |
|
Amperage |
200 A |
|
Device type |
Main Lugs |
|
Enclosure |
Indoor Type 1 Enclosure, Combination |
|
Phase |
3 Phase |
|
Socket Type |
0 |
|
1" Space |
18 |
|
1/2" Space |
0 |
|
Feed |
Either |
|
Door |
Yes |
|
GSA Compliance |
No |
Additional Documentation: Visit our Publication Library to find technical documentation, time current curves, CSI Specifications and promotional literature.
